Overview
An Exoskeleton
for Industrial Safety
Robotics
2023
angel GEAR is a modular wearable exoskeleton designed to adapt flexibly to various work environments and
conditions. It supports repetitive upper and lower back movements, reducing fatigue and injury during long
tasks. Each component is optimized for specific work scenarios such as lifting, posture support, and digital
monitoring, enhancing both safety and efficiency for the wearer.
Index
Part 1. Strategic Context
01 Macro Context
02 Business Verification
03 Field Research
04 Statistical Backing of Ergonomic Strain
05 Market & Competitor Analysis
Part 2. Design Management
06 Brand Guide System
07 Design Management Solution
08 User Experience Strategy
09 Hardware governance
Part 3. Engineering Details
10 Biomechanical Kinematics
11 Mechanical Actuation
12 Digital Interaction Architecture
13 Autonomous Wearable Usability
Part 4. Business Impact
14 Market Penetration Strategy
Part 1. Strategic Context
01 Macro Context
Social Demand &
Inevitable Wearables
Fixed Automation
24/7 high-volume output and
maximum precision.
Prohibitive costs and
severe spatial limitations.
Stricter legal regulations on industrial accidents have sharply increased corporate liability for worker safety. Traditional automation faces critical spatial and financial constraints, leaving core manufacturing processes reliant on human labor. To bridge this market gap, a wearable robot product line was planned preemptively providing immediate physical support while establishing a scalable technology infrastructure for future defense and healthcare sectors.
Humanoid
High mobility and zero labor risk.
Sub-standard field speed and
excessive R&D costs.
Wearables
Zero infrastructure costs
and disruptively low pricing.
Needs customization for
diverse user body sizes.
02 Business Verification
Exclusive Securing of Enterprise
Test-beds and Monetization
To capitalize on surging social demand, the business strategically targets high-growth sectors: logistics, manufacturing, and healthcare. Concurrently with product planning, exclusive test-beds were secured through partnerships with global brands, specifically LG Electronics (Changwon Smart Park) and CJ Logistics (Yangsan Logistics Center). This alignment ensures high research credibility and establishes a practical B2B revenue model through customized suit supplies.
03 Field Research
Identifying Process
Diversification & Structural Risks
Conducted ergonomic and musculoskeletal risk assessments through direct site visits to enterprise test-
beds. Deep analysis of actual field data revealed that working environments vary completely by industry. Furthermore, task types and physical workloads are highly diversified even within the same site, establishing concrete, data-driven design requirements.
Repetitive motion
MMH
Excessive force
Unnatural posture
Other factors
Unclassifiable
0 %
20%
40%
60%
Head, Neck
Shoulder
Arm, Elbow
Hands, Fingers
Waist
Legs, Feet
Source: Korea Occupational Safety and Health Agency
04 Statistical Backing of Ergonomic Strain
Need of Versatile Wearable Devices
Supporting Multiple Tasks
Industrial work environments vary widely, but existing wearable devices fail to adapt flexibly. Since real-world manufacturing tasks involve complex, combined movements, single-motion assistive devices have strictly limited effectiveness. Statistical data validates the urgent need for versatile solutions that support multiple tasks simultaneously.
05 Market & Competitor Analysis
Maturing Market
Absent Standard
Cross-analysis of the global market indicates that leading enterprises such as Ekso Bionics, Comau, and Ottobock are entering the wearable robotics sector.
However, no competitor has yet established definitive standard capable of adapting flexibly to diverse work environments and worker traits. Despite entering
a mature phase driven by government investment, a significant gap remains open for market leadership.
Heavy
High Cost
High adaptabilIty
(Flexible, Custom Size, Tool-less)
🇩🇪
German Bionic CrayX
Lower Back / Spine
$1,925
4.3 kg
🇩🇪
Ottobock Shoulder
Upper Arms / Shoulder
$5,130
1.8 kg
🇺🇸
Levitate Technologies
AIRFRAME
Upper Arms / Shoulder
$ 4,500
2.5 kg
🇰🇷
Hyundai Rotem VEX
Lower Back / Spine
$2,565
2.6 kg
🇩🇪
Hilti EXO-O1
Upper Arms / Shoulder
$1,800
1.9 kg
🇳🇱
Laevo flex
Lower Back / Spine
$1,925
4.3 kg
🇰🇷
Hyundai Rotem VEX
Upper Arms / Shoulder
$2,885
2.8 kg
🇺🇸
SuitX BackX
Lower Back / Hip
$4,000
3.2 kg
🇺🇸
Ekso Bionics EVO
Upper Arms / Shoulder
$ 1,800
3.0 kg
Light
Affordable
🇨🇦
Mawashi UPRISE
Full Body / Spine
$12,000
5.5 kg
🇯🇵
Panasonic ATOUN
Lower Back / Spine
$4,490
4.5 kg
🇮🇹
Comau MATE
Upper Arms / Shoulder
$2,565
4.0 kg
🇯🇵
INNOPHYS Every
Lower Back / Spine
$1,550
3.8 kg
🇯🇵
INNOPHYS GS-ARM
Upper Arms / Shoulder
$1,025
3.2 kg
🇨🇭
Auxivo LiftSuit
Lower Back / Hip (Apparel)
$1,400
0.9 kg
🇨🇳
Crimson Dynamics
CDYB-Fit
Lower Back / Hip (Apparel)
$1,100
0.85 kg
Low adaptabilIty
(Fixed Size, Requires Tools)
Part 2. Design Management
06 Brand Guide System
‘Rectuo’
From Rectangle to O
Brand
GEAR
Code
Version
B10
Brand Name
MEDI
GEAR
SUIT
FIT
⋮
Body Part Code
B
S
W
H
⋮
Assisted Part
Back
Shoulder
Wrist
Hand
⋮
Version
10
20
30
40
⋮
To resolve the structural fragmentation across different product lines, this stage delivers a unified brand identity driven by the sculptural concept of 'Rectuo'. This concept, where a rectangle transforms into a circular "O" shape, symbolizes the blending of contrasting concepts such as ‘human vs. robot’ and
‘emotion vs. reason’. Ultimately, this consolidated design DNA systematically unifies disparate mechanical lines, establishing a cohesive and premium Brand Look & Feel across the entire Angel Robotics product family.
Advanced, professional Innovative, ahead of the times
MEDI
GEAR
FIT
SUIT
Friendly, fashionable
Fun, human warmth
07 Design Management Solution
'Modular Platform' to Overcome
High-Mix Low-Volume Production
To fill this market gap, diversifying the product lineup was essential. However, reckless customization causes critical disadvantages for startups, such as rising costs and inventory failures. To resolve this,
a modular platform architecture was proposed, standardizing core components while allowing functional modules to be combined. This finalized a unique strategy that both maximizes productivity and delivers tailored customization for enterprises.
07 Design Management Solution
'Modular Platform' to Overcome
High-Mix Low-Volume Production
To fill this market gap, diversifying the product lineup was essential. However, reckless customization causes critical disadvantages for startups, such as rising costs and inventory failures. To resolve this,
a modular platform architecture was proposed, standardizing core components while allowing functional modules to be combined. This finalized a unique strategy that both maximizes productivity and delivers tailored customization for enterprises.
08 User Experience Strategy
A Modular Uniform for
Empowerment and Pride
angel GEAR is a modular uniform that redefines wearers as trained professionals rather than manual laborers. It empowers users physically and mentally through supportive design and a sense of pride. Its modular system adapts to various work environments, supports small-scale production, and offers customizable back and arm units, sensor-based motion detection, and
an adjustable fit—enhancing both performance and comfort.
Manual Laborer
Passive Routine
Trained Professional
Ownership
& Pride
09 Hardware governance
High-Mix
Low-Volume
Risk Control
To proactively resolve the cost and quality control burdens of high-mix, low-volume production for hardware startups, design governance was executed. The upper body hardshell, carbon pipe, linear bush, and module connection socket were designed into a single standardized common platform. Developing the sibling lines, S10 and B10, around this standard socket drastically reduced mold costs and budgets.
Optimized Storage
& Easy Mobility
Additionally, a foldable structure was adopted to maximize storage and transport efficiency in cramped environments, allowing clients to purchase additional modules with minimal financial burden.
S10
Shoulder and Arm Support
B10
Back Support
BS10
Shoulder & Back Support
Soft B10
Back Support
Part 3. Engineering Details
10 Biomechanical Kinematics
Support for
Sustained Postures
This stage defines the kinematics criteria to minimize musculoskeletal strain during repetitive tasks.
S10 provides targeted assistance to maintain stability during continuous shoulder-elevated work, while B10 delivers structural torque when bending the back for extended periods, helping users sustain optimal
posture and work more efficiently.
S10
Highest Exercise Points &
Sustaining Force Points
B10
Lowest Exercise Points &
Sustained Support
S10 for Sustained Posture
with Raised Shoulders
B10 for Sustained Bending
at the Waist
11 Mechanical Actuation
No Charging
Non-Powered Suit
To eliminate operational downtime and charging infrastructure costs,
a high- efficiency non-powered spring-elastic structure is integrated. S10 offers three adjustable tension levels with a torque range of 38–80 kgf·cm. B10 provides strong support of around 347 kgf·cm, while Soft B10 comes in Mild (~180) and Strong (~270) variations to accommodate diverse work intensities.

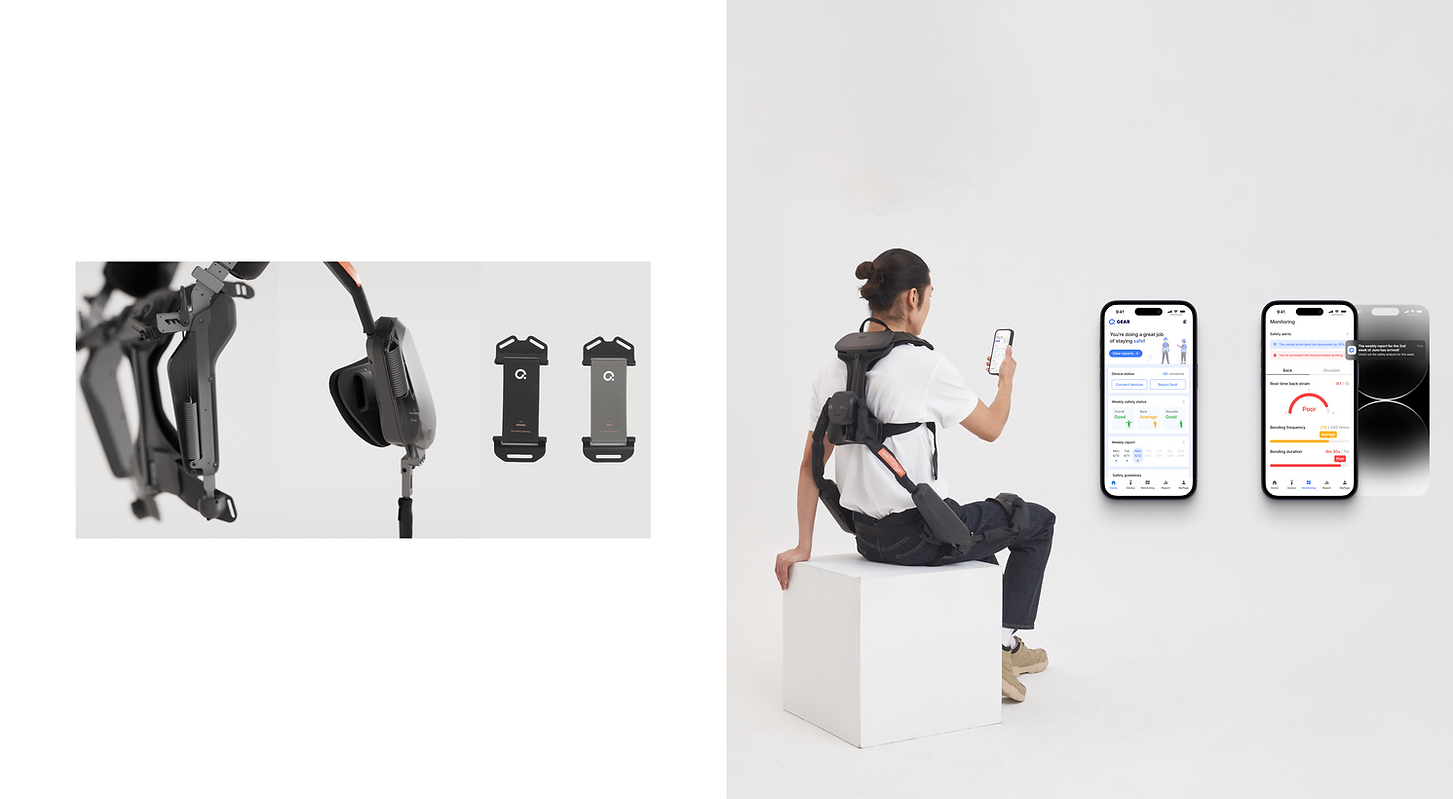

The embedded sensory module detects and analyzes the user's micro-movements and joint angles in real time. Beyond simple hardware telemetry, this quantified physical load data is integrated into a dedicated 'Angela' application for users and managers. This interface serves as a strategic foundation for transitioning Angel Robotics into a software-driven data platform company, converting raw physical labor into a connected, intelligent smart workstation ecosystem.
12 Digital Interaction Architecture
Data Driven
Workstation
Ecosystem
S10’s Spring Elastic
Body Structure
B10’s Spring Elastic
Body Structure
Soft B10’s Band Elastic
Body Structure
Angela GEAR
Home Screen
Body Load Monitoring
with Weekly Reports
13 Autonomous Wearable Usability
Intuitive Donning for
Field Independence
To maximize field accessibility and user independence, the wearable interface is designed for rapid, intuitive donning and doffing.
All fastening mechanisms utilize high-durability, simple-to-use Velcro systems. This allows for immediate fine-tuning after fastening,
drastically improving the wearer's tactile comfort and customizable fit without external aid.
Adjust and fasten
the chest strap.
Fasten both arms.
Fasten the clips
on both sides.
Adjust the shoulder straps
to get a perfect fit.
Adjust the pelvic pad
to your height.
Adjust and fasten
the chest strap.
Tighten both thighs.
Adjust the shoulder straps
to get a perfect fit.
Adjust and fasten
the chest strap.
Adjust and fasten
the side strap.
Tighten both thighs.
Adjust the waist straps
to get a perfect fit.
S10
B10
Soft B10
Part 4. Business Impact
14 Market Penetration Strategy
Data Driven
Commercialization Architecture
To establish long-term financial viability, this project implements a continuous business pipeline driven by pragmatic site data. By initiating direct B2B partnerships with tier-one enterprises, the system conducts advanced process diagnostics to capture raw environmental and ergonomic telemetry. This captured site intelligence is directly leveraged as scalable R&D assets to deliver cost-effective, semi-customized solutions for small-to-mid-tier markets through strategic distributor networks, significantly reducing development overhead and accelerating break-even point stabilization.
01 Process analysis request from client enterprises
(Logistics/Manufacturing/Hospitals, etc.)
02 Product development and sales based on analysis targeting conglomerates
(simulated markets with strong brand power)
Fee Payment or Development Commission
Analysis & Improvement Proposal
Request for process (hazardous factor) analysis
angel
robotics
angel
robotics
angel
robotics
Client Companies
Client Companies
Client Companies
Intermediate
Distributor
& Retailer
03 For SMEs (fewer than 50 employees), providing customized suits
based on working environment data secured from simulated markets
Custom Suit Production & Validation
Payment for customized suit
Request for product development based on analysis results
Request for product development based on analysis results
Custom Suit Payment
Custom Suit Payment
(Margin Agreement)
Custom Production & Sales
Custom Production & Sales
